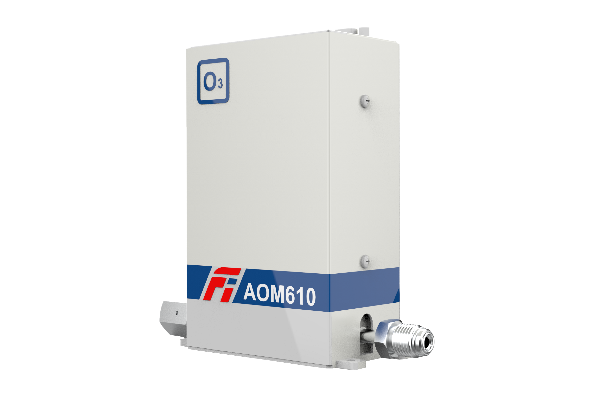

AOM-610 Advanced High Density Ozone Sensor
AOM-610 Advanced High Density Ozone Sensor
|
AOM-610 Advanced High Density Ozone Sensor |
||||
 |
||||
|
Measurement Range |
5, 20, 25% wt% (wt% & g/Nm3 unit switchable) |
|||
 |
||||
|
||||
|
Accuracy |
±1% of Full Scale. |
|||
 |
||||
|
Response Time |
2 sec. to 95% |
|||
 |
||||
|
Max. Proof Pressure: |
100 PSIA |
|||
 |
||||
|
Flow: |
0.1-5.0 LPM |
|||
 |
||||
|
Temperature Range: |
5 to 45°C |
|||
 |
||||
|
Warm-Up Period: |
less than 2 minutes |
|||
 |
||||
|
Power Requirement: |
12-18V, (maximum current 0.5A) |
|||
|
||||
|
Interface: |
API 452 compatible + RS485 Modbus protocol |
|||
 |
||||
|
