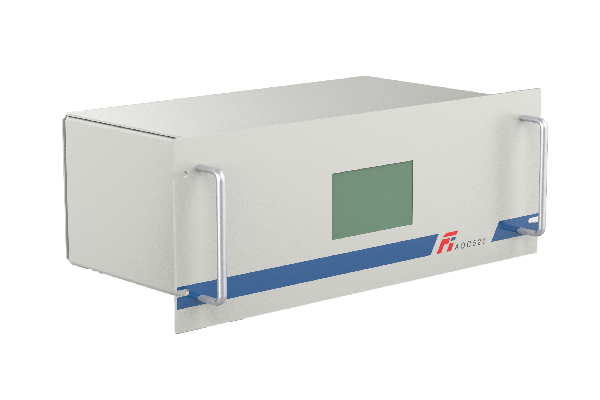

AOC-520 Advanced Ozone Controller
|
AOC-520 Advanced Ozone Controller |
||||
 |
||||
|
Generator Support |
Designed to support 4 Ozone Generators, industry pin out with open/close loop control |
|||
 |
||||
|
||||
|
Device IO |
||||
 |
||||
|
Ozone Generator |
4x IDC10 header compatible with DB9 interface. |
|||
 |
||||
|
Mass Flow Controller |
4x DB9 connectors for O2 mass flow controller + 1x DB9 connectors for N2 mass flow controllerl |
|||
 |
||||
|
Back Pressure Regulator |
4x DB15 connectors for back pressure regulators. |
|||
 |
||||
|
Ozone Sensor |
4x DB15 connectors for AOM610 (or API 452 compatible) |
|||
 |
||||
|
EV Valve |
4x 2 Pin Connector for 24 VDC electrical valve |
|||
|
||||
|
Chiller |
1x DB15 connector for chiller |
|||
|
||||
|
Interface: |
DB25 RS232 + 3 pin RS485 with Modbus protocol |
|||
|
||||
|
Compatible with API 552 interface |
|
|||
 |
||||
|
